10kn Capacity Tensile Pull Test Machine For PVC

  • 1
  • 2

Brand Name : JINHAIHU

Model Number : XWW-10KN

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 sets per month

Delivery Time : 7 work days

Packaging Details : Standard export wooden cases

Place of origin : Beijing, China

Customized support : OEM, ODM, OBM

Product Name : Pull test machine universal price tensile test and universal testing machine utm

Capacity : 10KN

Accuracy range : ±0.5%

Force-measuring Range : 1%~100%FS(0.4%~100%FS optional)

Application : PVC, PE, ABS, PP, PMMA, PC, RAHECO, etc

Certificate : ISO, CE

Power : 220V, 50HZ(can customized)

Warranty : 12 months

Contact Now

Pull test machine universal price tensile test and universal testing machine utm

Application:

Pull test machine universal price tensile test and universal testing machine utm are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



Meet Standards:

ISO 527, ISO 6259, GB/T 1040, ISO7500-1, ISO 5893,ISO 9969, ASTM D638695790



Software function:

 Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.



Main technical parameters:

Model

XWW-10KN

Type

Double column model

Accuracy Grade

Class 1 (Class 0.5 optional)

Force-measuring Range

1%~100%FS(0.4%~100%FS optional)

Deformation-measuring Range

2%~100%FS

Deformation-measuring Accuracy

±1%

Crossbeam Displacement Resolution

0.001mm

Crossbeam Speed Range

0.05~500mm/min

Displacement Speed Accuracy

≤ ±0.5%

Metal Extensometer Accuracy Grade

±0.5%

Test width

380mm

Tensile Space

700mm

Compression Space

1000mm

Clamps

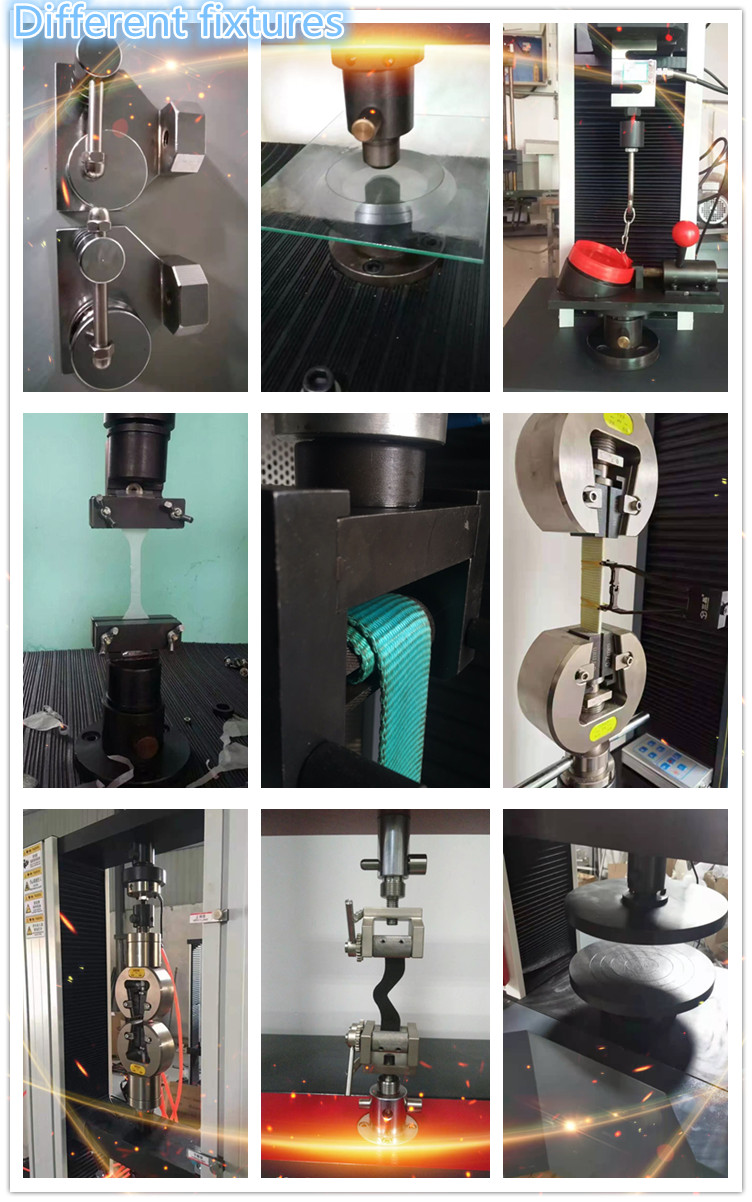

Tensile, compression, bending fixture

PC System

Equiped with brand computer

Power Supply

AC 220V±10%, 50Hz  (can be customized as customer request)

Size of the host

700*400*2000mm

Packing size & Weight

800*500*2100mm,about 350kg







10kn Capacity Tensile Pull Test Machine For PVC10kn Capacity Tensile Pull Test Machine For PVC

10kn Capacity Tensile Pull Test Machine For PVC10kn Capacity Tensile Pull Test Machine For PVC10kn Capacity Tensile Pull Test Machine For PVC

10kn Capacity Tensile Pull Test Machine For PVC
